Product Overview

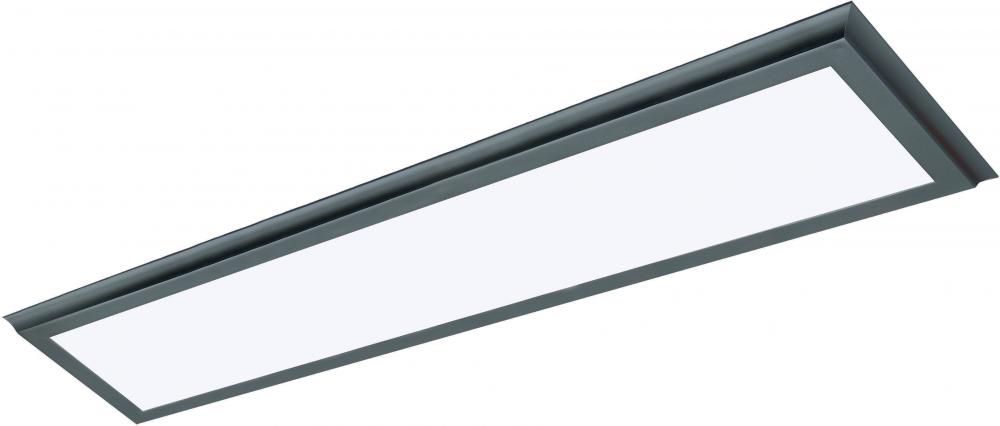

45W; 12 in.; x 48 in.; Surface Mount LED Fixture; 3000K; Bronze Finish; 120/277V

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Finish:

Bronze

Style:

Traditional

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Close-to-Ceiling

Sub Category:

Edge Lit

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Dimmable:

Yes-Dimmable

Each Height:

2.24

Each Length:

50.39

Each Width:

14.76

Length:

12

Lumens:

3600L

Tariff Code:

9405.11.8020

Warranty:

5 Year Limited - Fixtures

Amps:

0.375/0.162A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Reverse Phase or Phase Selectable

Each Cube:

0.9641

Each Quantity:

1

Efficacy:

80.00 LPW

ES Category:

Ceiling Mount

ES Unique ID:

ESID-2291240

FCC Compliant:

Yes

Feature 1:

Length: 12.00 inches, Width: 48.00 inches, Height: 1.00 inch

Feature 2:

Bronze Finish

Feature 3:

5 year limited warranty

Feature 4:

3600 lumens

Feature 5:

Dimmable

Feature 6:

3000K Warm White Light

Feature 7:

Superior 90 CRI light quality

Feature 8:

Rated for 50,000 hours

Feature 9:

FCC and RoHS compliant

Finish Family:

Bronze

Fixture shape:

Linear

Incandescent Equivalent:

200W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Long Description:

Satco's 62-1184 45 watt, linear LED surface mount fixture is a sleek lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this dimmable, easy to install, LED fixture. T

Material:

Aluminum

Mounting Procedure:

Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.81

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 45 watt, linear LED surface mount fixture is a sleek lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this dimmable, easy to install, LED fixture. This rect

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

45W/LED/1X4/FLUSH/3K/BRZ

Temperature (CCT):

3000K

Title 20 Compliant:

No

Title 24 Compliant:

Yes

Wattage Selectable:

No

Weight Lb.:

10.58
