Part Number: LRGD6 / Vendor ID #: 27

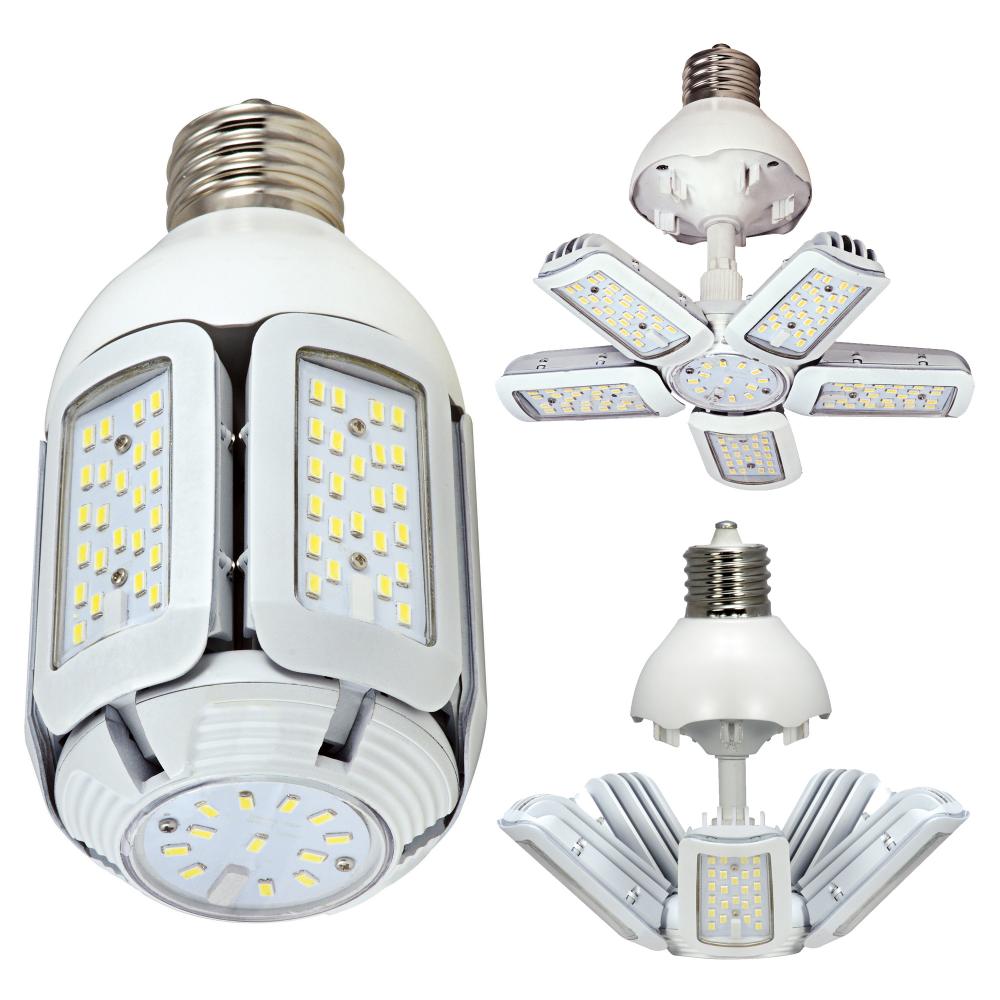

75 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt
$237.38
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer may be Out Of Stock.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Dimensions
Width: 4.19"
75 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
Corncob
Diameter:
4.19
EA Length:
5.39
Harmonized Codes:
8539.50.0091
Length:
8.630000000000001
Lumens:
9800L
Shap Carton Width:
5.39
Ship Carton Height:
9.84
Ship Weight:
3.11
Warranty:
5 Year Limited - Hi-Pro
Weight:
2.54
Additional Info:
Width 360 deg 4.2 in.; Width 270 deg 9.3 in.; Width 180 deg 10.9 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Base Up or Down
Carton Cubic Feet:
0.1654
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
130.67 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
105W
HID Equivalent:
400W
Housing Color:
White
Incandescent Equivalent:
750W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures. Arms fully open diameter is 10.88 inches
IP Rating:
IP65
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Location Rating:
Damp
Minimum Compartment Size:
Length: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
75W/LED/HID/MB/5000K/100-277V
Surge Protection:
Built-in surge protection - 3KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
75W
