4W Emergency LED Driver (52J1H)

Image may not reflect selected features
No Image
Available
4W Emergency LED Driver
additional image
BASE PRICE:
$
182
50
/ / 1
($182.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
52J1H
Dimensions:
Height: 1.55"
Width: 2.38"
Length: 11.00"
Damp Rated , Title 20
Availability:
  • Manufacturer availability unavailable.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Description
Details
Downloads

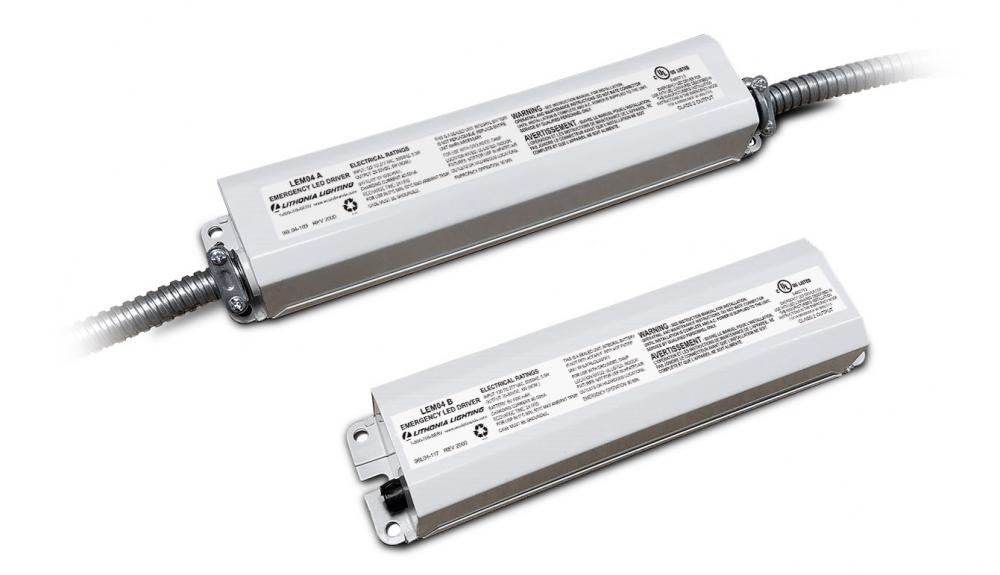

The LEM04 emergency LED driver enables the lighting fixture to deliver a minimum of 90 minutes illumination during a loss of normal AC power. It is UL Listed for factory or field installation with indoor, damp location luminaires utilizing 20-50VDC output voltage. When normal AC power fails, the LEM04 immediately drives the LED load at reduced light output for a minimum of 90 minutes. When AC power is present, the emergency LED driver ensures the sealed, maintenance-free, high-temperature nickel-cadmium batteries are fully charged within 24 hours after a discharge and remains fully charged until the next loss of AC power. The included test switch/pilot light provides visual and manual means of monitoring the system operation.
Internal #:
52J1H
Category:
Specialty Items
Subcategory:
Ballasts
Style:
Commercial
Category:
Emergency LED Driver
Option:
Damp Rated , Title 20
Voltage:
120-277 V
Depth:
2.05
Keyword(s):
LEM04, Emergency LED Driver, Fixture Attached,Remote Mount,Unit to J Box
Length:
11
Ship Carton Height:
19
Ship Carton Length:
2
Ship Carton Width:
5
Ship Weight:
2.75
Weight:
2.5
ADA Compliant:
No
Airtight Rating:
No
Application Type:
Behavioral Health, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Retail, Utility, Closet, Warehouses
Ballast Driver Required:
No
Batteries Included:
Yes
Battery Chemistry Type:
NiCd
Battery Recharge Time:
24 hours
Battery Run Time:
90 min
Battery Voltage:
4.8 V
Contains Lithium Battery:
No
Contains Mercury:
No
Contractor Select:
Yes
Country of Origin:
CN
CSA Approved:
No
Daylight Sensing:
No
Environment:
Indoor
Maximum Operating Temperature:
50
Mounting:
Fixture Attached, Remote Mount, Unit to J Box
Safety Rating:
IC, C-UL-US
Size:
11 x 2.38 x 1.55 IN
State Province Restrictions:
CA-Approved
Warranty:
3 Year Limited
