Product Overview

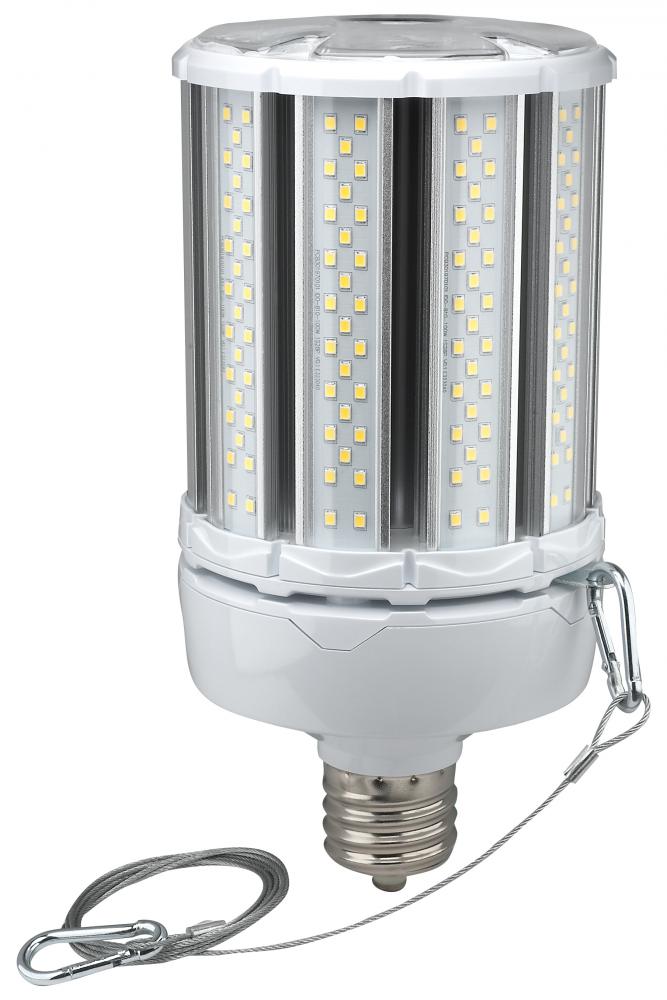

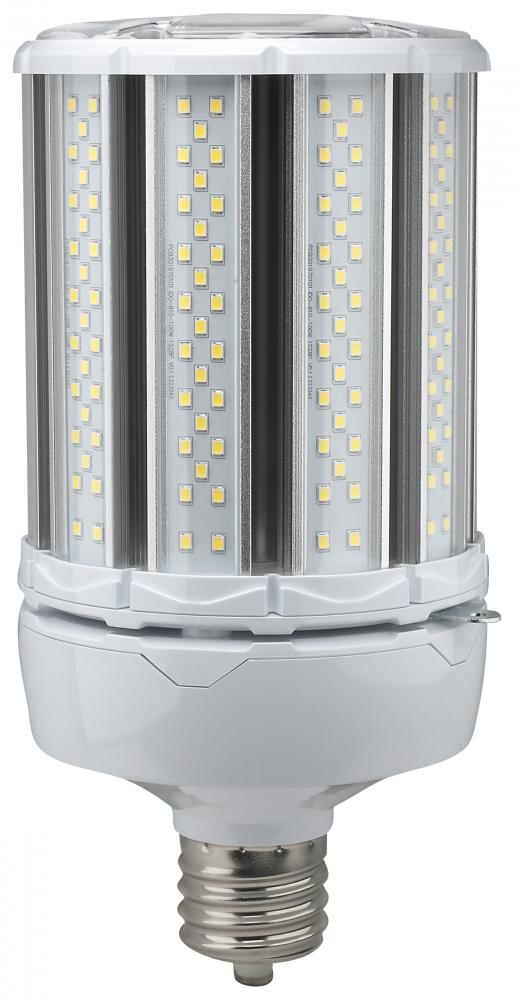

100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;100-277 Volt

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

Corncob

Diameter:

4.72

EA Length:

6.3

Harmonized Codes:

8539.52.0091

Length:

9.880000000000001

Lumens:

14300L

Shap Carton Width:

6.3

Ship Carton Height:

11.22

Ship Weight:

4.13

Warranty:

5 Year Limited - Hi-Pro

Weight:

3.45

AC/DC:

AC 100-277V

Additional Info:

Emits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass- Direct wire only 100V-277V

Beam Spread:

300

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Base Up or Down

Carton Cubic Feet:

0.2577

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

143.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

150W

HID Equivalent:

400W

Housing Color:

White

Incandescent Equivalent:

500W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP64

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Lens Material:

Plastic (PS)

Location Rating:

Damp

Material:

Aluminum / Plastic

Minimum Compartment Size:

Length: 17.32 in. Width: 9.25 in. Depth: 9.25 in.

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Shatter Proof Text:

Shatter resistant materials

Short Description:

100W/LED/HID/5K/100-277V/EX39

Specification Notes:

DLC 5.1 replacement S23144; Non-DLC replacement S49396

Surge Protection:

Built-in surge protection - 6KV

Technology:

LED

Thermal Management:

Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

100W
